Standard CIC Series
The Standard CIC Series is a collection of industrial cameras designed for high-precision, high-speed image acquisition in automation systems and various manufacturing and quality control applications.

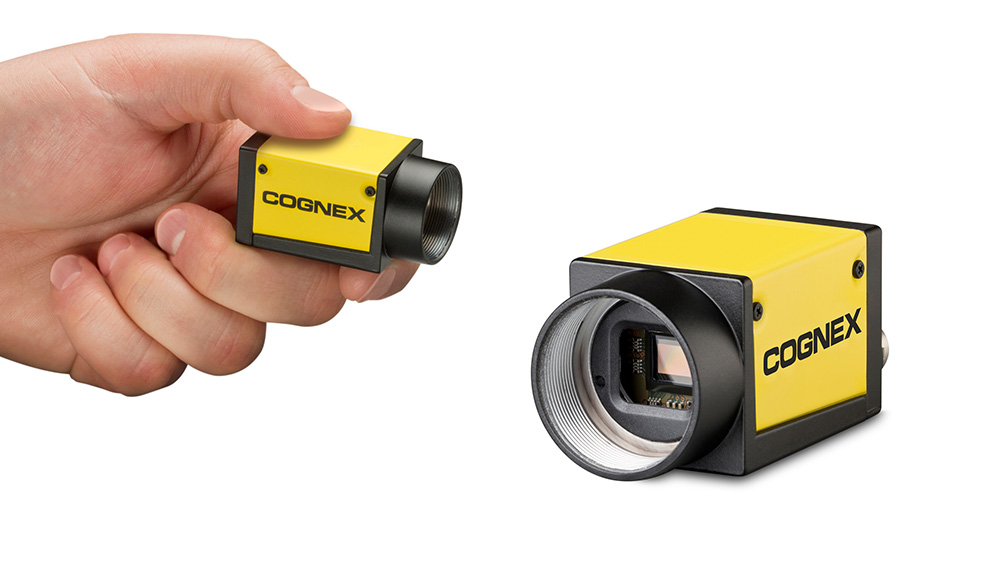

Introduction to CIC Industrial Cameras – GigE Interface Series
The CIC GigE camera series is an ideal choice for applications requiring high-precision and high-speed image acquisition in automation and quality control systems. With a compact, robust design and fast data transmission via GigE interface, this product line meets a wide range of machine vision demands.
Product Categories:
- Area Scan Cameras:
Equipped with CMOS sensors offering resolutions from 1.3MP to 31MP, supporting both color and monochrome image capture. Options include global or rolling shutter types, with flexible frame rates ranging from 3 fps to 60 fps.- Common sensors: Sony IMX (IMX178, IMX264, IMX342…), Aptina MT9P031, GMAX0505
- Pixel bit depth: 10 – 12 bits
- Lens mounts: C-mount, M58 (with adapter), M42 (for specialized models)
- Line Scan Cameras:
Includes two models for monochrome and color capture with high resolution (4Kx1 and 4Kx2), and speeds up to 28 kHz — ideal for surface inspection or high-speed packaging applications.
Key Specifications:
- Data Interface: GigE (Cat 6 Ethernet, RJ45 connector)
- Power Supply: Supports PoE or external 9–24 VDC power
- I/O Connection: Hirose 6-pin or 12-pin connectors
- Highly Customizable: A wide selection of resolutions and sensor types makes it suitable for all scales and industrial applications
Standard Cables for CIC Industrial Cameras
To ensure stable performance and optimal compatibility with CIC camera models, Cognex offers a range of high-quality standard cables designed for various common industrial applications.

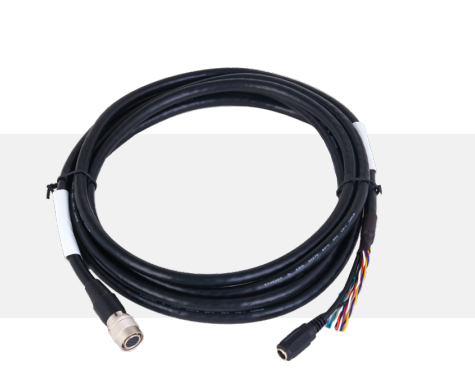

1. Hirose 6-pin I/O Cable (Female Connector)
- COG-IO-CBL-6P-10M:
I/O cable for CIC cameras, 6-pin Hirose connector to flying leads, 10 meters (32.8 ft). - COG-IO-CBL-6P-PLC:
I/O cable with integrated Zener diodes for PLC connection, 6-pin Hirose to flying leads, 10 meters.
2. Hirose 6-pin I/O Cable (Male Connector)
- CCB-PIO-M8-6M-05:
Power I/O cable for 5GigE CIC cameras, M8 6-pin male to flying leads, 5 meters (16.4 ft). - CCB-PIO-M8-6M-10:
Same type of power I/O cable, 10 meters (32.8 ft).
3. Hirose 12-pin I/O Cable (Female Connector)
- CCB-IO-HR12F-5:
Hirose 12-pin I/O cable, HR12 female connector, 5 meters long. - CCB-IO-HR12F-10F:
Same type of cable with high-flex material, 10 meters long.
4. Ethernet Cables (CAT6)
Designed for GigE network connections, all models use high-flex material and feature RJ45 horizontal connectors:
- CGE-CBL-FLEX-H-5M: 5 meters (16.4 ft)
- CGE-CBL-FLEX-H-10M: 10 meters (32.8 ft)
- CGE-CBL-FLEX-H-20M: 20 meters (65.6 ft)
Note: Cables listed below are for common standard applications; special applications require additional verifications
Rugged CIC Series
The Rugged CIC Series is a collection of industrial cameras built to withstand harsh environments, including extreme temperatures, vibrations, and exposure to dust or moisture in demanding industrial applications.

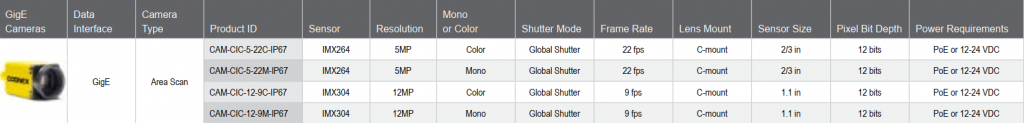

Model Details:
IP67 Accessories for CIC Industrial Cameras
To support the installation and operation of industrial cameras in harsh environments, Cognex offers a range of IP67-rated accessories, ensuring effective dust and water resistance.
1. Lens Covers
Lens covers of varying lengths and diameters, compatible with different IP67 CIC camera models:
- LNS-CVR-40-IP67: Length 40.5mm, outer diameter 41mm, inner diameter 35.5mm.
- LNS-CVR-50-IP67: Length 50.5mm, outer diameter 41mm, inner diameter 35.5mm.
- LNS-CVR-66-IP67: Length 66mm, outer diameter 68mm, inner diameter 59mm.
- LNS-CVR-92-IP67: Length 92mm, outer diameter 68mm, inner diameter 59mm.
All are compatible with IP67 CIC industrial camera series.
2. 8-Pin M8 GPIO Cables
Cables for GPIO connection with IP67 cameras, available in different lengths and styles:
- CCB-M8IO-8-05: Straight cable, 5m (15.4 ft) long.
- CCB-M8IO-8-15: Straight cable, 15m (49.2 ft) long.
- CCB-M8IO-8-RA2-15: Right-angle cable, 15m (49.2 ft) long.
All are IP67-rated, ensuring stable operation in industrial environments.
3. M12 X-Code Ethernet Cables
High-speed data transmission cables for industrial network systems:
- CCB-84901-2001-05: 5m (15.4 ft) long, M12 to RJ45 connectors.
- CCB-84901-2001-15: 15m (49.2 ft) long, M12 to RJ45 connectors.
- CCB-84901-2001-30: 30m (99 ft) long, M12 to RJ45 connectors.
All Ethernet cables are IP67-rated, utilizing X-Coded connections for high performance and exceptional durability.
Frame Grabbers
GigE Card
Cognex offers a high-performance line of Frame Grabber cards for GigE Vision communication, suitable for a variety of machine vision needs. These card models support software such as VisionPro, Cognex Designer, and Edge Learning Tools, depending on the selected version.
5GigE Frame Grabber

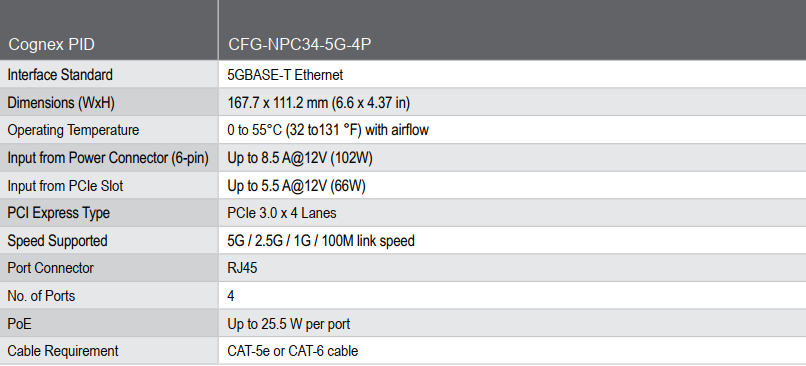

Cognex offers a high-performance frame grabber card with 5GigE Ethernet connectivity, ideal for machine vision systems that require fast and stable data transmission. The CFG-NPC34-5G-4P model is an excellent choice for modern industrial applications thanks to its powerful processing capabilities and flexible design.

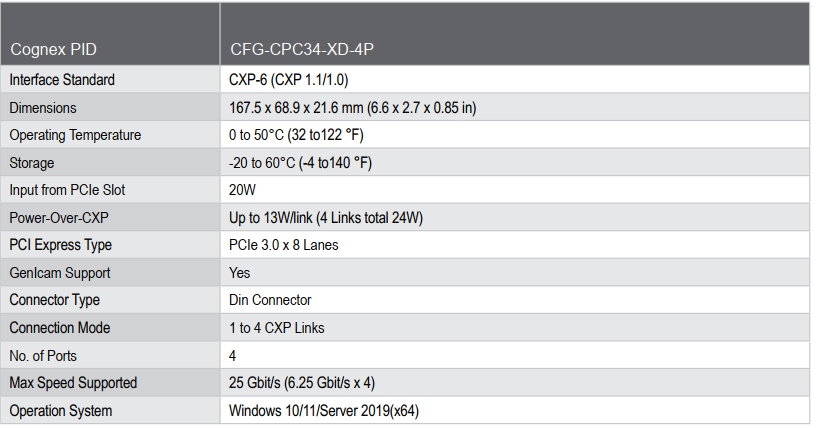

CXP-6 Frame Grabber
Recommended 5GigE Camera Cable Selections
Recommended CXP-6 Camera Cable Selections
