OPTICAL GLASS OPT-CT3659-5M

◆ Product Description:

• High resolution: The OPT-CT3659-5M lens is compatible with industrial cameras up to 5MP with pixel size ≥ 3.45 μm, 2/3″ sensor, achieving a resolution of up to 140 lp/mm at full FOV
• Low foot arch deformation: Total deformation < 0.7%, minor deformation < 0.02%

◆ Technical Specifications:

Product Code	OPT-CT3659-5M
Focal length (mm)	25
Focal length rear (mm)	11.54
Working Distance (mm)	200~∞
Aperture (F/#)	F1.4~F16
Sensor format	1/3″ | 1/2.5″ | 1/1.8″ | 2/3″
Connection standard	C-Mount
Deformation	<0.3%
Maximum field of view (H*V)	10.9°×8.3° | 13.1°×9.9° | 16.4°×12.4° | 19.4°×16.2°
Weight (g)	80 g

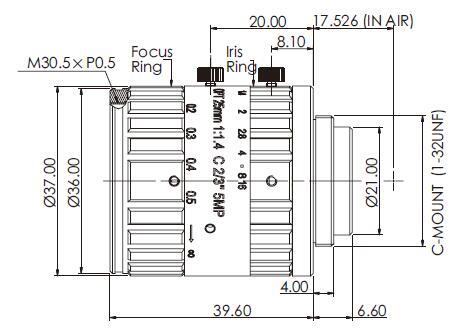

◆ Size:

•
