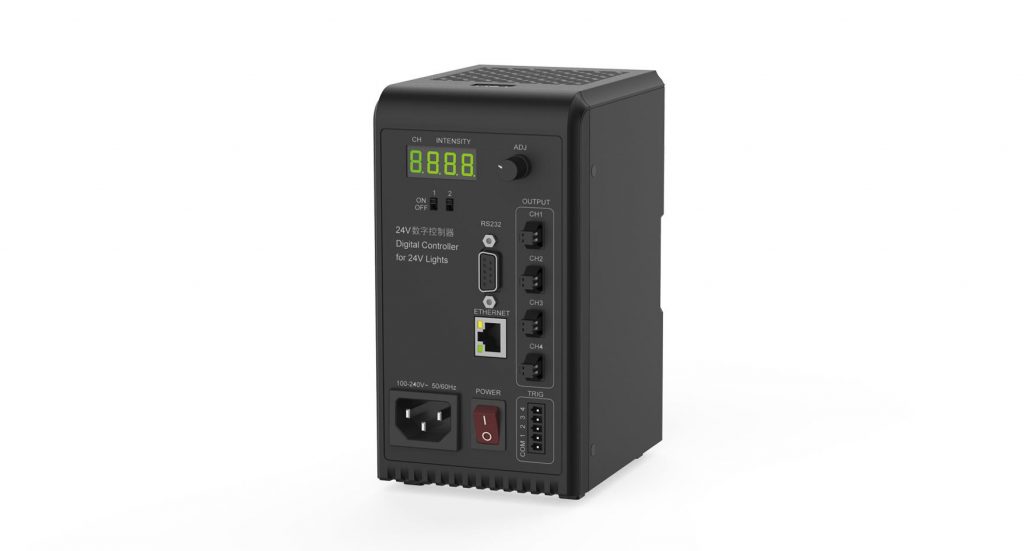

LIGHTING CONTROL UNIT

◆ Product Description:

• The industrial digital OPT-TA220524EC light controller is designed with switching technologies, integrating many advanced features
• Using switching technology to achieve high efficiency: >90%.
• Integrate various protection functions: input overvoltage, output overvoltage, overcurrent, short circuit, and overheating.
• Using advanced cooling methods to enhance the lifespan of the controller.
• Sturdy shell structure, impact-resistant, safe for transportation and use.
• Allow changes to the shell structure to suit the working environment conditions in industrial plants.

◆ Technical Specifications:

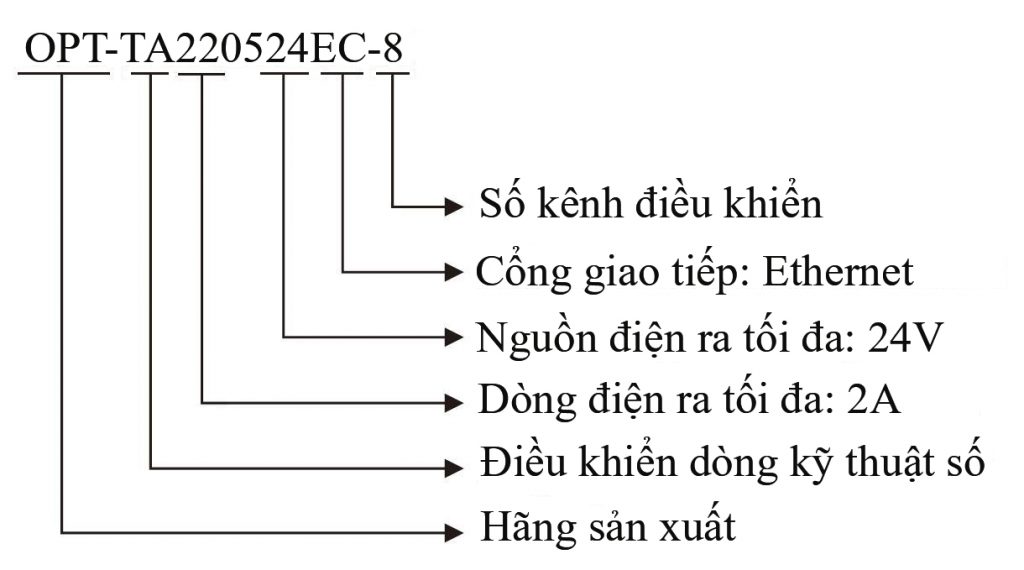

Product Code	OPT-TA220524EC
Number of control channels	4/8
Input Voltage	100~240V AC 2.3A 50/60Hz
Output Current	10mA~2A
Lighting mode	Continuous/Blinking
Automatically detect power source for the light	10mA-2A, 24V
Intensity control	256 steps
Frequency	20kHz
Output power	48W/CH
Communication	RS232/Ethernet
Control delay	0.01~5.00ms
Operating temperature	-5℃~50℃
Size (L*W*H)	108mm*132.4mm*172.1mm
Weight (kg)	1.2
